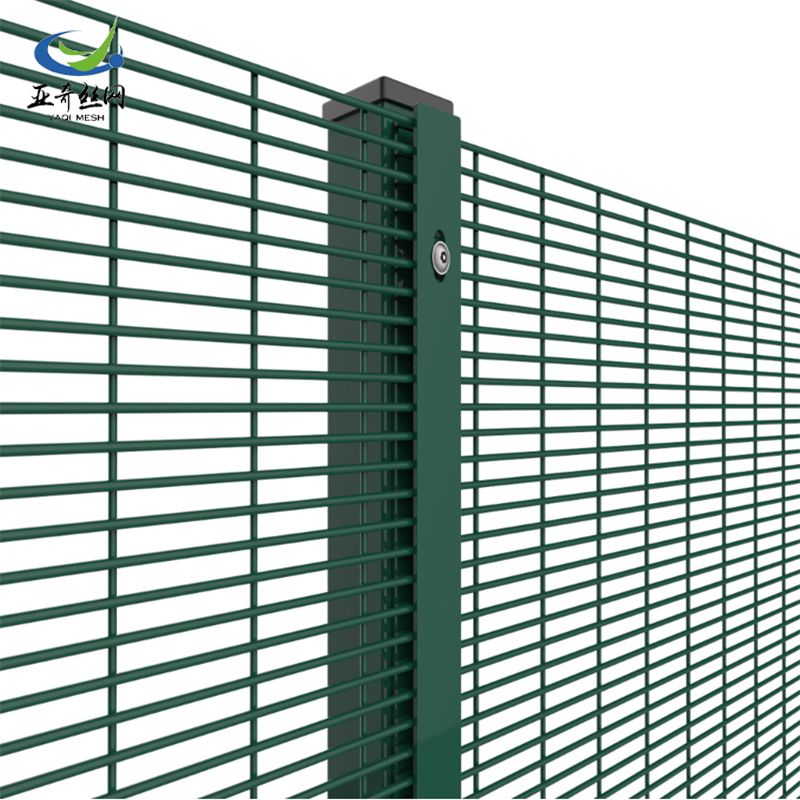

358 Mesh Fencing

358 Mesh Fencing - the Highest Level of Security Welded Panel Barrier

358 extra high-security mesh fence made from a type of strong welded mesh panel with a small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. 
The fence name 358 comes from its panel mesh opening of 3" × 0.5" × 8 gauge - approximately 76.2 mm × 12.7 mm × 4 mm mesh opening.

358 Mesh Fence Features

Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High-strength welded at each intersection.
Durable: Covering Galfan and polymer powder coating ensures a long service life.
Mesh fencing is specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.


Anti-cutting 358 Mesh Fencing

358 mesh fencing with dense mesh size has the anti-climbing feature.


Anti-climbing 358 Mesh Fencing

The panels are made of heavy mesh with a high level of security in a width of 2515 mm and a height of 2007 mm to 3302 mm. Several panels can be installed on top of each other. This may achieve a total height of 6300 mm.

358 Mesh Panel Size

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540-690 N/m2.
Surface treatment: 358 mesh fence panels made from Galvan wire, then PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post for securing with slotted clamp bars and M8 diameter bolts.


FENCE POST

Material: High-grade steel for maximum strength and rigidity.
Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron )
Colors: Green RAL 6005, or Black RAL 9005.
Post cap: metal caps or plastic caps.
Metal clips and clamps are hot dip galvanised then powder



Horizontal Wire and Vertical Wire 358 Security Fence
Mesh OpeningWire DiameterHeight of FenceWidth of FencePost Type
12.7x76.2mm3/3.5/4mm1.2-2.5m2.0-3.1mSquare Post(SHS)
(0.5'' x 3'')60x60x2.0/2.5/3.0mmRectangular Post(RHS)
80x80x2.0/2.5/3.0mm40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color: RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you


Horizontal Wire and Vertical Wire With V Fold 358 Security Fence
Mesh OpeningWire ThicknessPanel WidthPanel HeightNumber of FoldsPost Type
76.2*12.7mm(3''*0.5'')3.0mm
or
4.0mmor
5.00mm
2.0m
or
2.50m
1830mm3

Square Post(SHS)

50X50x1.5/2.0mm
60x60x1.5/2.0mm
80x80x1.5/2.0mm

Rectangular Post(RHS)

40x60x1.5/2.0mm
 40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm
1930mm3
2030mm4
2230mm4
2430mm4
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you



High Security 358 Fence With Razor Wire
Mesh OpeningWire ThicknessPanel WidthPanel HeightNumber of FoldsPost Type
76.2*12.7mm(3''*0.5'')3.0mm
or4.0mmor5.00mm
2.0m
or
2.50m
1830mm3

Square Post(SHS)

50X50x1.5/2.0mm
60x60x1.5/2.0mm
80x80x1.5/2.0mm

Rectangular Post(RHS)

40x60x1.5/2.0mm
 40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm
1930mm3
2030mm4
2230mm4
2430mm4
Razor wire typeRazor wire diameter
BTO-10; BTO-12; BTO-18; BTO-22; BTO-28; BTO-30; CBT-60; CBT-65450mm,500mm,600mm,700mm,900m,960mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you
