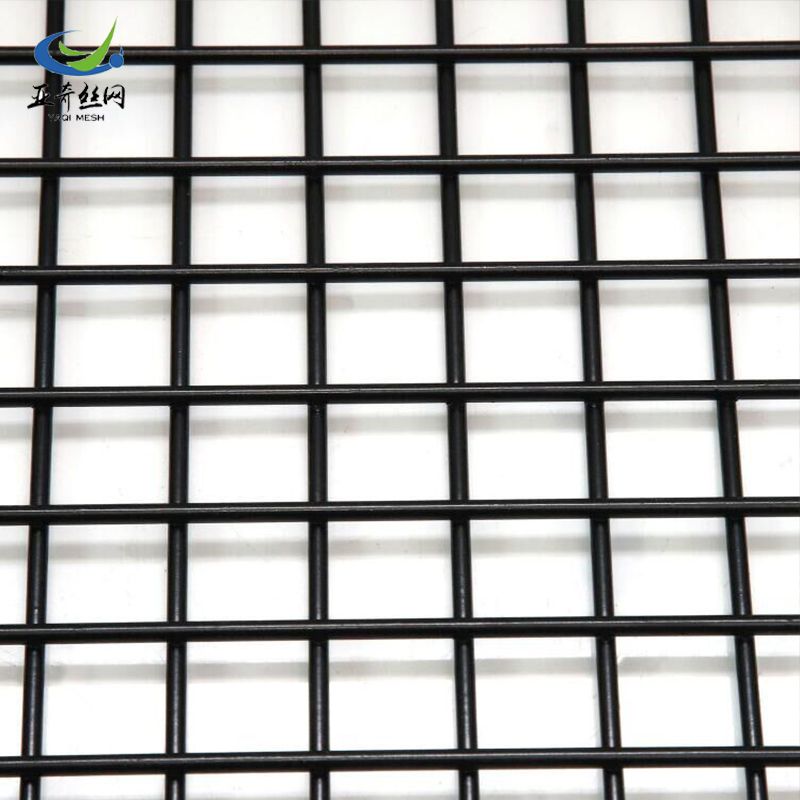

Welded wire mesh panel is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Product Description
Welded Wire Mesh is common kind of construction wire mesh series. The structure of this kind of wire mesh is strong, lasting and rust-resistant. Surface treatment can be galvanized and PVC coated. Two ways of galvanized: hot dipped( hot galvanized) & cold(electrol) galvanized welded wire mesh.
Welded mesh panel is made of high-quality Q195 low-carbon steel wire, and then cold plating (electroplating), hot dipped, PVC coating and other surface passivation, plasticizing treatment, mesh surface leveling, uniform mesh, welding Strong point, good local machining performance, stability, anti-corrosion, good anti-corrosion grid-like wire mesh products. Galvanized (electro galvanized or hot-dip) is carried out after the welded mesh is formed; the product is made of high-quality galvanized iron wire through precise automatic mechanical welding.
Welded mesh panel has the characteristics of firm solder joints, reasonable structure, uniform mesh, flat mesh surface, firm structure, strong integrity, and strong corrosion resistance. It can also be used as a special mesh for floor heating in the construction industry.
Material:
low carbon steel wire, stainless steel wire and galvanized iron wire. Other materials are also acceptable according to customers' requirements.
Application:
Welded wire mesh with flat surface and firm structure are widely used in exhibitions, samples shelves, fence panel, highways, railways, air ports, ports, docks, municipal construction, agriculture and breeding industry.
Welded Wire Mesh Panel Type:
● Hot dipped galvanizing after welding wire mesh panel
● Hot dipped galvanized before welding wire mesh panel
● Electric galvanizing after welding wire mesh panel
● Electric galvanized before welding wire mesh panel
● PVC coated welded wire mesh
● Electro or Hot-dipped Galvanized Welded Wire Mesh Panel is made of quality low carbon steel wire.
● PVC coated welded wire mesh panel is made of quality low carbon inside then PE powder outside. All kinds of colors can be coated according to customers' special requires
Welded Wire Mesh Panel Specifications:
| Product Name | welded wire mesh panel |
| Wire diameter | 2mm, 2.5mm, 3mm, 4mm ,4.8mm, 5mm 6mm,8mm or as your requirement |
| Mesh size | 25x25mm, 25x50mm, 50x50mm, 75x75mm, 100x100mm,150x150mm or as your request |
| Panel size | 1x2m, 1.5 x2.2m, 2.2x5.8m, 2.4mx6m or as your request |
| Surface treatment | hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated |
| Applications | Wire Fencing And Building Material |
| Welded Wire Mesh Panel | |||
| Wire Diameter (mm) | Aperture (mm) | Width (M) | Length (M) |
| 2.0mm-3.2mm | 25.4mm(1") | 0.914m-1.83m | All the length can be made according to customer's requirement. |
| 2.0mm-4.5mm | 50.8mm(2") | 0.914m-2.75m | |
| 2.0mm-6.0mm | 70.2mm(3") | 0.914m-2.75m | |
| 2.0mm-6.0mm | 101.6mm(4") | 0.914m-2.75m | |
| 2.0mm-6.0mm | 127.0mm(5") | 0.914m-2.75m | |
| 2.0mm-6.0mm | 152.4mm(6") | 0.914m-2.75m | |
| 2.0mm-6.0mm | 177.8mm(7") | 0.914m-2.75m | |
| 2.0mm-6.0mm | 203.2mm(8") | 0.914m-2.75m | |
